TrolMaster Hydro-X VFD Basic Compact Driver for AC Motor Speed Control
Basic Compact Driver for AC motors speed controls

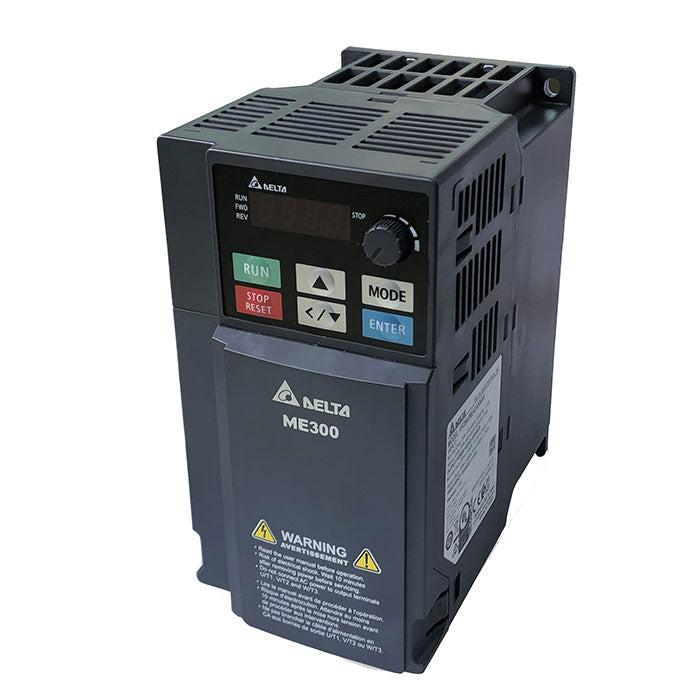

The Delta-1 is a customized made variable-frequency drive (VFD) by Delta company. It can be used in the TrolMaster Hydro-X Pro system to control the speed of AC motors (industrial fans etc.)
An RJ45 cable is included for connecting with the TrolMaster VFD-1 module.
This customized version has had all the parameters preset and ready to be operated with VFD-1 module straight out of the box.
Specifications
- Normal Duty: 3PH 380-480V 50/60Hz 11.6A
- Heavy Duty: 3PH 380-480V 50/60Hz 9.9A
- Normal Duty: 3PH 0-460V 10.5A 8.0KVA 3.7KW
- Heavy Duty: 3PH 0-460V 9A 6.9KVA 3.7KW
- Frequency Range: 0-599 Hz
Input
Output: Power ND(HD) 5HP(5HP)
IP20/UL Open-Type (rated-20°C to 50°C Ambient)
NEMA 1/UL Type1 when installed with conduit box kit (rated-20°C to 40°C Ambient)
Original: $657.35
-70%$657.35
$197.21Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Basic Compact Driver for AC motors speed controls
The Delta-1 is a customized made variable-frequency drive (VFD) by Delta company. It can be used in the TrolMaster Hydro-X Pro system to control the speed of AC motors (industrial fans etc.)
An RJ45 cable is included for connecting with the TrolMaster VFD-1 module.
This customized version has had all the parameters preset and ready to be operated with VFD-1 module straight out of the box.
Specifications
- Normal Duty: 3PH 380-480V 50/60Hz 11.6A
- Heavy Duty: 3PH 380-480V 50/60Hz 9.9A
- Normal Duty: 3PH 0-460V 10.5A 8.0KVA 3.7KW
- Heavy Duty: 3PH 0-460V 9A 6.9KVA 3.7KW
- Frequency Range: 0-599 Hz
Input
Output: Power ND(HD) 5HP(5HP)
IP20/UL Open-Type (rated-20°C to 50°C Ambient)
NEMA 1/UL Type1 when installed with conduit box kit (rated-20°C to 40°C Ambient)
