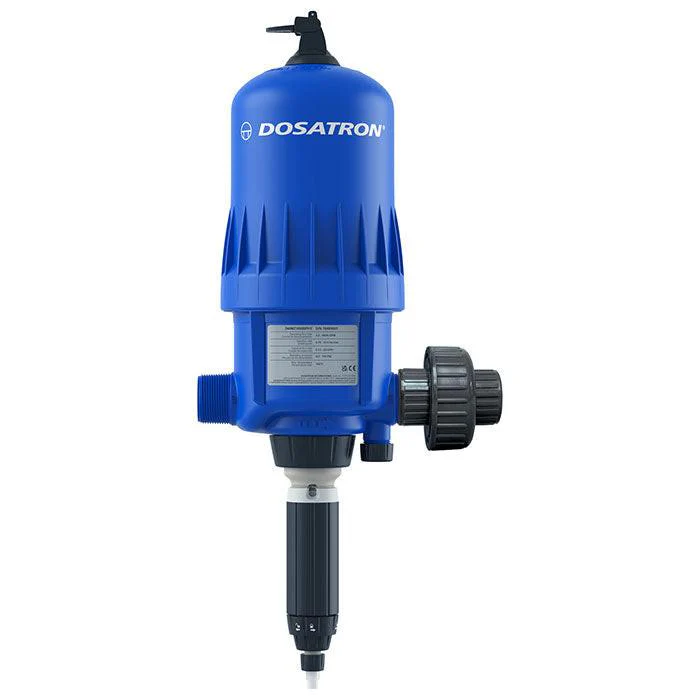

Dosatron D40MZ1000 Water Powered Doser, 40 GPM, 1:1000 to 1:100, Aflas Seals, 1.5 Inch (D40MZ1000BPAFHY)

The Water-Powered Dosatron D40MZ1000-HY - 40 GPM with concentration scale specifically designed for hydroponic applications. Includes an integrated by-pass to easily switch the nutrients on and off. It has a flow range of 2.2 to 40 GPM and a dilution range of 1:1000 to 1:100 (0.1% to 1%).

This unit is made to be installed in series as part of a hydroponic system with included union fitting. It is the ideal injector for the most common liquid nutrient programs, offering higher flow rates and greater chemical compatibility than existing technology. Because the unit can be adapted to new or existing Hi-Flo Nutrient Delivery Systems, installation is easier than ever.

---

Specifications

• Dilution Range: 1:1000 to 1:100 (0.1% to 1%)
• Injection Range mL/gal: 3.75 - 37.5 mL/gal
• Water Flow Range: 2.2 to 40 GPM
• Operating Pressure Range: 4.3 to 116 PSI
• Available Housing Materials: Polypropylene (Standard Blue)
• Dimensions: 25 1/4” x 8 1/2”
• Weight: 12 lbs.
• Connection Size: 1 1/2” NPT
• Maximum Temperature: 104° F
• Included Accessories: 6' clear suction tube, weighted strainer, mounting bracket and operating manual
• Recommended Accessories: 200 mesh filter, check valve, pressure regulator, flow restrictor
