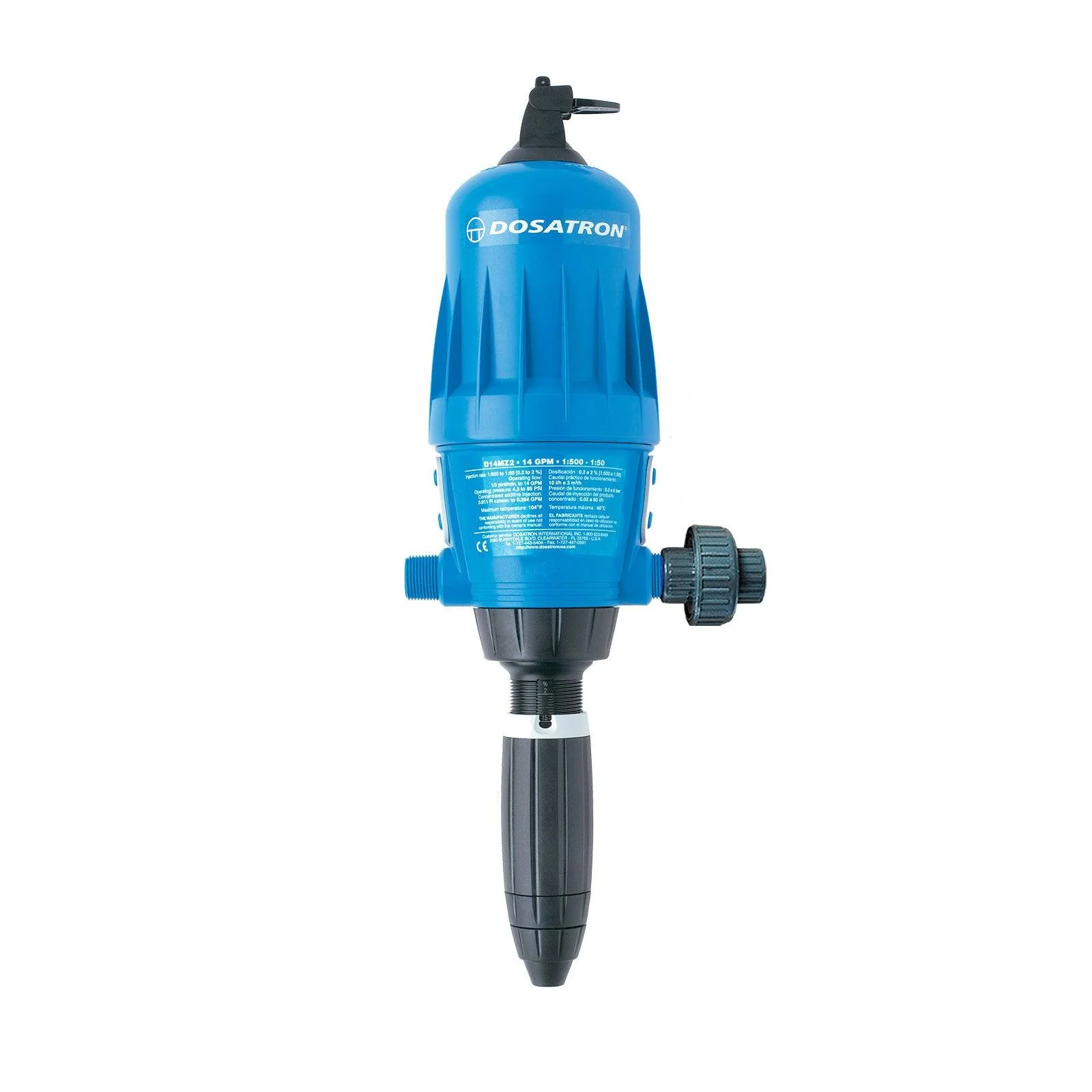

Dosatron D14MZ2 Water Powered Doser, 14 GPM, 1:500 to 1:50, Viton Seals, 3/4 Inch (D14MZ2VFBPHY)

The Water-powered Dosatron D14MZ2BPVFHY - 14 GPM with dosing seals for neutral or low pH chemistries, and dosing scale specifically designed for hydroponic applications. Includes an integrated by-pass to easily switch the nutrients on and off. Unit made to be installed in series as part of a hydroponic system with included union fitting.

It is the ideal injector for the most common liquid fertilizer programs, offering higher flow rates and greater chemical compatibility than existing technology. It has a flow range of 0.05 to 14 GPM and a dilution range of 1:500 to 1:50 (0.2% to 2%).

Maintenance & Rebuild Kits

• For a regular maintenance use Mini Maintenance Kit # PJDI116MINI-H.
• For a recommended yearly maintenance use Seal Kit # PJDI116VF.
• To extend the life of your Dosatron use Rebuild Kit # MKD14MZ2VF.

---

Specifications

• Dilution Range: 1:500 to 1:50 (0.2% to 2%)
• Injection Range mL: 7.5 to 75 mL/gal
• Water Flow Range: 0.05 to 14 GPM
• Operating Pressure Range: 4.3 to 85 PSI
• Available Housing Materials: Polypropylene
• Dimensions: 19 1/18” x 6 5/16”
• Weight: 6 lbs.
• Connection Size: 3/4" NPT
• Included Accessories: 6' clear suction tube, strainer, bypass, weight, mounting bracket and operating manual
• Recommended Accessories: 200 mesh filter, check valve, pressure regulator, flow restrictor
