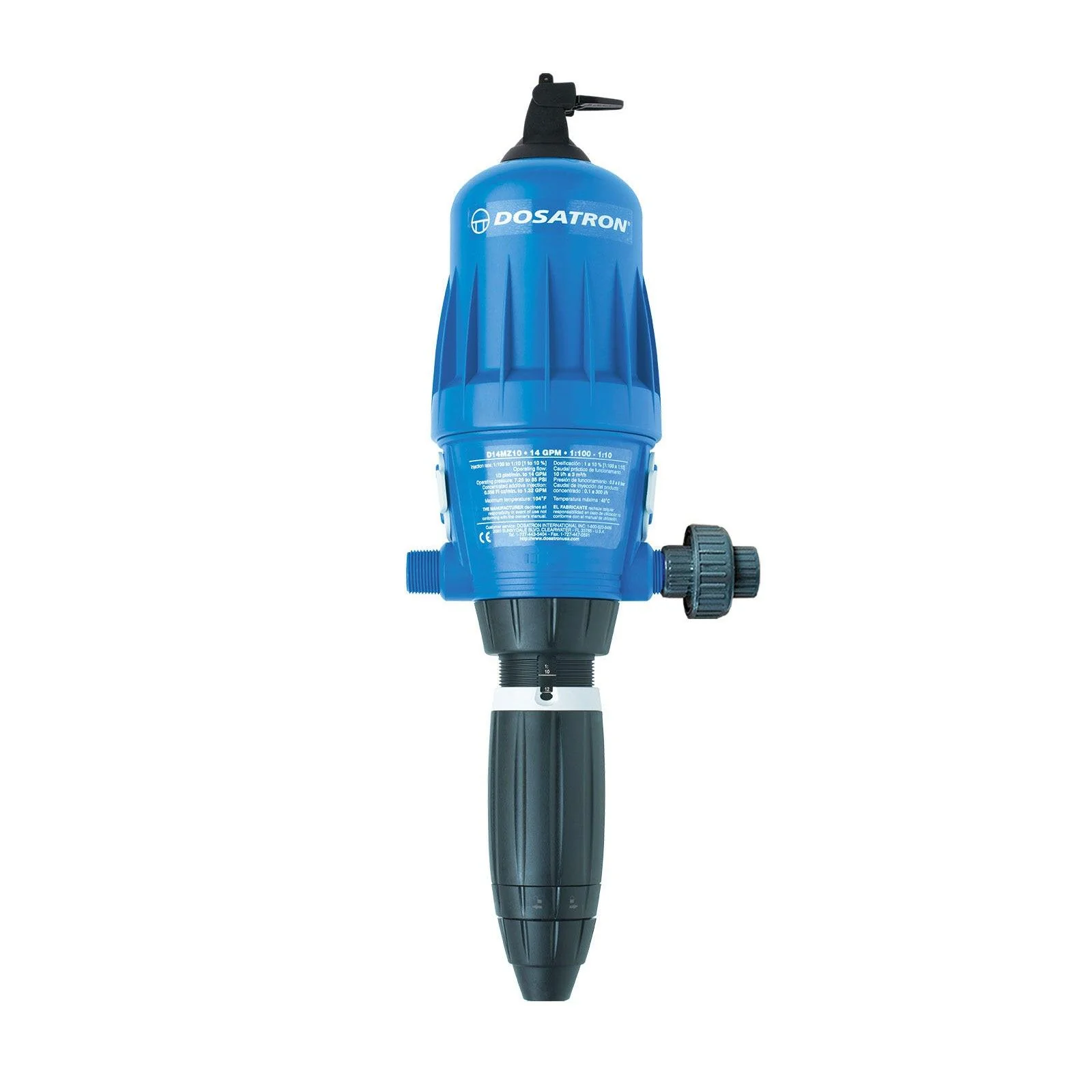

Dosatron D14MZ10 Water Powered Doser, 14 GPM, 1:100 to 1:10, Viton Seals, 3/4 Inch (D14MZ10VFBPHY)

The Water-powered Dosatron D14MZ10VFBPHY - 14 GPM with dosing seals for the injection of acidic chemistries and concentration scale specifically designed for hydroponic applications.

Includes an integrated by-pass to easily switch the nutrients on and off. Unit made to be installed in series as part of a hydroponic system with included union fitting. It has a flow range of 0.05 to 14 GPM and a dilution range of 1:100 to 1:10 (1% to 10%).

Maintenance & Rebuild Kits

• For a regular maintenance use Mini Maintenance Kit # PJDI122MINI-H.
• For a recommended yearly maintenance use Seal Kit # PJDI122VF.
• To extend the life of your Dosatron use Rebuild Kit # MKD14MZ10VF.

---

Specifications

• Dilution Range: 1:100 to 1:10 (1% to 10%)
• Injection Range mL: 37.5 to 375 mL/gal
• Injection Range tsp: 7.5 to 75 tsp/gal
• Water Flow Range: 0.05 to 14 GPM
• Operating Pressure Range: 7 to 85 PSI
• Available Housing Materials: Polypropylene
• Dimensions: 19 1/18” x 6 5/16”
• Weight: 6 lbs.
• Connection Size: 3/4" NPT
• Included Accessories: 6' clear suction tube, strainer, bypass, weight, mounting bracket and operating manual
• Recommended Accessories: 200 mesh filter, check valve, pressure regulator, flow restrictor
